F402 Double Flanged Long Type

Double Flanged Butterfly Valve Long Type (Our Series F402) Characteristic : Adopting design of double-eccentric the friction on sealing ring

Double Flanged Butterfly Valve Long Type (Our Series F402)

Characteristic : Adopting design of double-eccentric the friction on sealing ring may be decreased to extend service life. Design Standard: BS5155

Face to Face: ISO 5752 basic series 14 (long) / DIN 3202 part 1 series F4

Connection: ANSI DIN BS Flanges

Working Pressure: 0.6 Mpa to 1.6 Mpa

Operator: Worm Gear Pnematic & Electric Actuator

Size: 4" to 48"

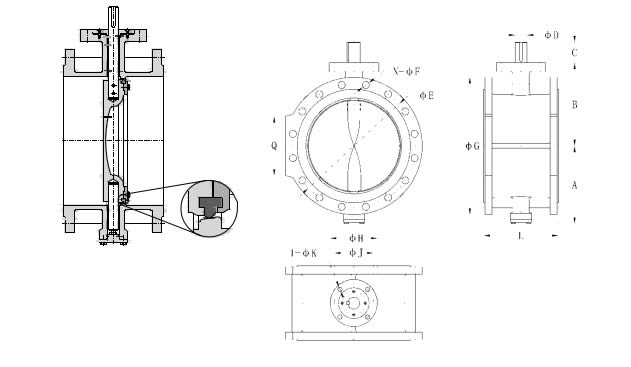

Dimensions List (mm)

Size		A	B	C	D	E			N-F			G			H	J	I- K	L	Q
mm	inch	A	B	C	D	ANSI 125/150	PN10	PN16	ANSI 125/150	PN10	PN16	ANSI 125/150	PN10	PN16	H	J	I- K	L	Q
100	4	137	145	32	15.9	190.5	180	180	8-19	8-18	8-18	229	220	220	90	70	4-9.5	190	-
125	5	152	160	32	19.1	215.9	210	210	8-22	8-18	8-18	254	250	250	90	70	4-9.5	200	-
150	6	169	180	32	19.1	241.3	240	240	8-22	8-22	8-22	279	285	285	90	70	4-9.5	210	-
200	8	206	210	38	22.2	298.5	295	295	8-22	8-22	12-22	343	340	340	125	102	4-11.5	230	-
250	10	236	245	38	28.6	362	350	355	12-25	12-22	12-26	406	395	405	125	102	4-11.5	250	-
300	12	266	270	38	31.8	431.8	400	410	12-25	12-22	12-26	483	445	460	125	102	4-11.5	270	-
350	14	296	300	45	31.8	476.3	460	470	12-29	16-22	16-26	533	505	520	125	102	4-11.5	290	-
400	16	330	338	51	33.3	539.8	515	525	16-29	16-26	16-30	597	565	580	210	165	4-22	310	250
450	18	360	370	51	38.1	577.9	565	585	16-32	20-26	20-30	635	615	640	210	165	4-22	330	300
500	20	390	405	64	41.3	635	620	650	20-32	20-26	20-33	699	670	715	210	165	4-22	350	300
600	24	460	470	70	50.8	749.3	725	770	20-35	20-30	20-36	813	780	840	210	165	4-22	390	400
700	28	515	520	72	55	-	840	840	-	24-30	24-36	-	895	910	300	254	8-18	430	400
800	32	565	580	72	55	-	950	950	-	24-33	24-39	-	1025	1025	300	254	8-18	470	450
900	36	630	635	77	75	1085.9	1050	1050	32-41	28-33	28-39	1168	1115	1125	300	254	8-18	510	500
1000	40	693	700	85	85		1160	1170	-	28-36	28-42	-	1230	1255	300	254	8-18	550	550
1200	48	810	840	150	92	1422.4	1380	1390	44-41	32-39	32-48	1511	1455	1485	350	298	8-22	630	650
